LumiCell CDr20 Microglia Stain

Neuroscience Microscopy Flow cytometry
Cat. # Quantity Price Lead time
3570-50ug 50 ug $50 in stock
3570-500ug 500 ug $350 in stock
Bulk inquiry
Found better price? Let us know and we will propose the way forward!

CDr20 (Cell Designation red 20) is a high-performance fluorogenic chemical probe for labeling microglia in both cell cultures and live brains. CDr20 is a substrate of microglia-specific UDP-glucuronosyltransferase Ugt1a7c. The glucuronidation of CDr20 by Ugt1a7c produces bright red fluorescence in microglial cells coinciding with the expression of markers P2ry12, Csf1r, Cx3cr1, and Iba-1 [1].

CDr20 could be a valuable tool for identifying and visualizing microglia in neural disorder studies both in vitro and in vivo and for CDr20-based fluorescent-activated microglial cell sorting (FACS).

[1] Kim B. et al. Visualizing Microglia with a Fluorescence Turn-On Ugt1a7c Substrate. Angew. Chem. Int. Ed. Engl. 2019. 58(24). 7972-7976.

BV2 microglial cells stained with LumiCell CDr20 Microglia Stain (3570-x). BV2 microglial cells were stained with LumiCell CDr20 Microglia Stain (3570-x, 80 nM) for 30 min at 37°C, fixed with 2% paraformaldehyde, and covered with LumiMount DAPI Fluorescence Mounting Medium (x3144). The images were taken on a confocal microscope (excitation at 543 nm, emission at 650 nm).

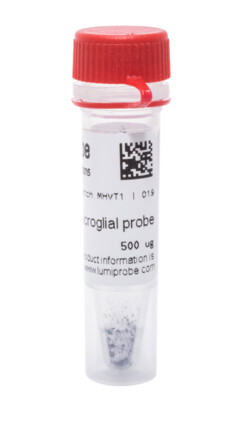

LumiCell CDr20 Microglia Stain, 3570-500ug
LumiCell CDr20 Microglia Stain, 3570-500ug
LumiCell CDr20 Microglia Stain, 3570-500ug
Structure of CDr20
Download in
ChemDraw format

Absorption and emission spectra of CDr20 Microglia Stain

Absorption and emission spectra of CDr20 Microglia Stain

Customers also purchased with this product

LumiTracker® Mito TMRE

Tetramethylrhodamine ethyl ester (TMRE) is an orange-red fluorescent dye for staining active mitochondria and quantitate mitochondrial membrane potential in live cells.

KeepRNA, Stabilization and Storage Solution for RNA

Aqueous solution for rapid stabilization and storage of cellular RNA in tissues and cell cultures.

LUCS® 13, green fluorescent nucleic acid stain

LUCS 13 is a cell-permeant green fluorescent nucleic acid stain that exhibits bright, green fluorescence upon binding to nucleic acids.

General properties

Appearance: greenish black crystals
Molecular weight: 354.17
CAS number: 1201643-01-7
Molecular formula: C19H17BF2N2O2
Quality control: NMR 1H and HPLC-MS (95+%)
Storage conditions: 24 months after receival at -20°C in the dark. Transportation: at room temperature for up to 3 weeks. Desiccate.
MSDS: Download
Product specifications

Spectral properties

Excitation/absorption maximum, nm: 562
ε, L⋅mol−1⋅cm−1: 97500
Emission maximum, nm: 581
